Guhring

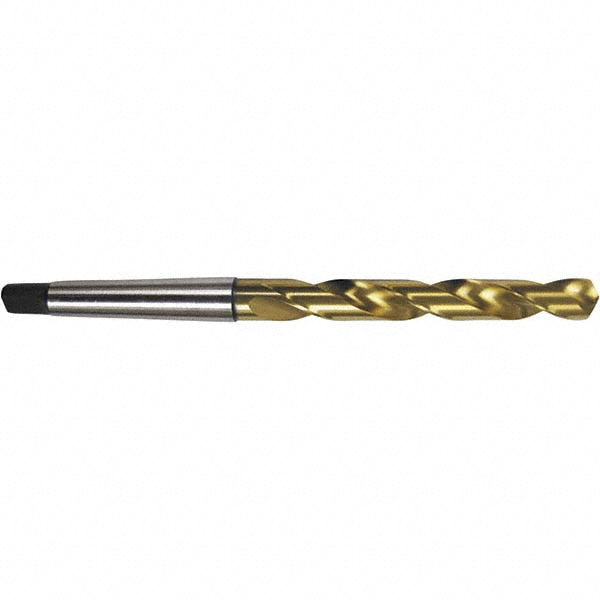

3/4" High-Speed Steel Drill Bit, TiN, 118° point - Guhring 9006540190500
MFR# 9006540190500Series 654
$143.26List $183.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/4
CoatingTiN
Description
The Guhring 9006540190500 is a 3/4" High-Speed Steel drill bit with a TiN finish, 118° point. Series 654.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.033 mm
Drill bit size in3/4
Drill point angle118
Flute length5.5118
Flute typeSpiral
Overall length9.3701
Point typeStandard
Shank taper designation2MT
Spiral typeRegular
StandardsDIN 345
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
