Guhring

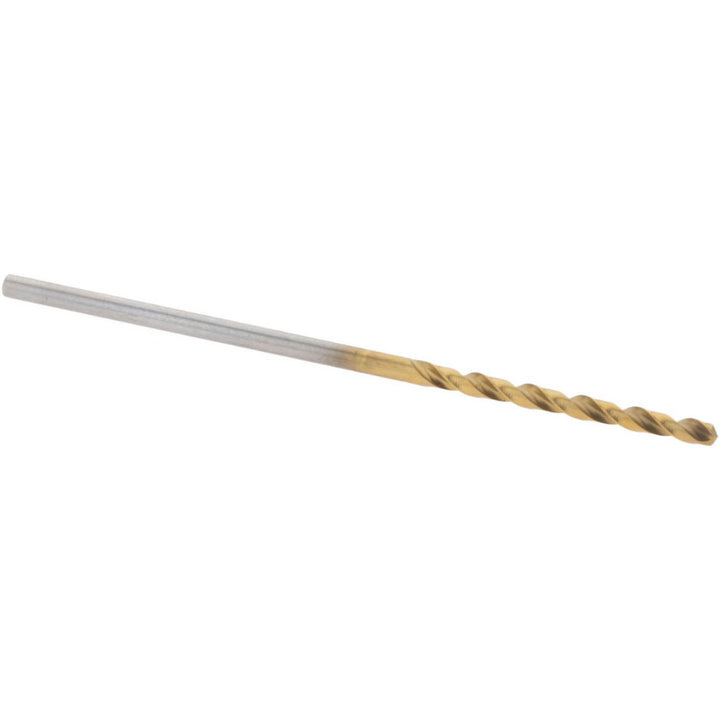

0.0492" Cobalt Drill Bit, TiN, 130° point - Guhring 9006570012500
MFR# 9006570012500Series 657
$28.20List $35.54
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006570012500 is a 0.0492" Cobalt drill bit with a TiN finish, 130° point. Suited for titanium alloy. Series 657.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.0492
Drill bit size range0.0000 - 0.0500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length0.6299
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.6299
Number of flutes2
Overall length1.4961
Point typeSplit
Primary workpiece materialTitanium Alloy
Shank diameter0.0492
Shank length0.8661
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool applicationCentering
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
