Guhring

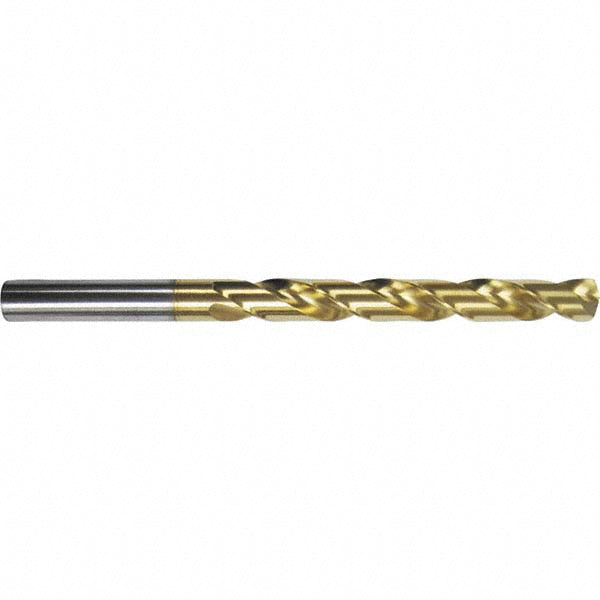

3/16" Cobalt Drill Bit, TiN, 130° point - Guhring 9006570047600
MFR# 9006570047600
$27.31List $35.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
CoatingTiN
Description
The Guhring 9006570047600 is a 3/16" Cobalt drill bit with a TiN finish, 130° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length2.0472
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth2.0472
Number of flutes2
Overall length3.3858
Point typeSplit Point
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter in3/16
Shank length1.3386
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
