Guhring

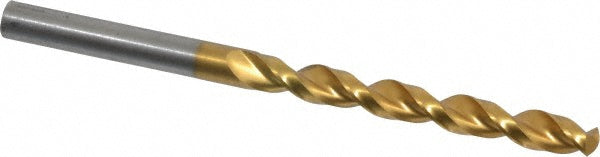

15/64" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580059500
MFR# 9006580059500Series 658
$43.41List $54.71
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
Flutes2
CoatingTiN
Description
The Guhring 9006580059500 is a 15/64" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. Series 658.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in15/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)57.00
Flute typeParabolic
Maximum drilling depth1.8930
Number of flutes2
Overall length (mm)93.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in15/64
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
