Guhring
0.2953" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580075000
MFR# 9006580075000
$51.92List $66.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

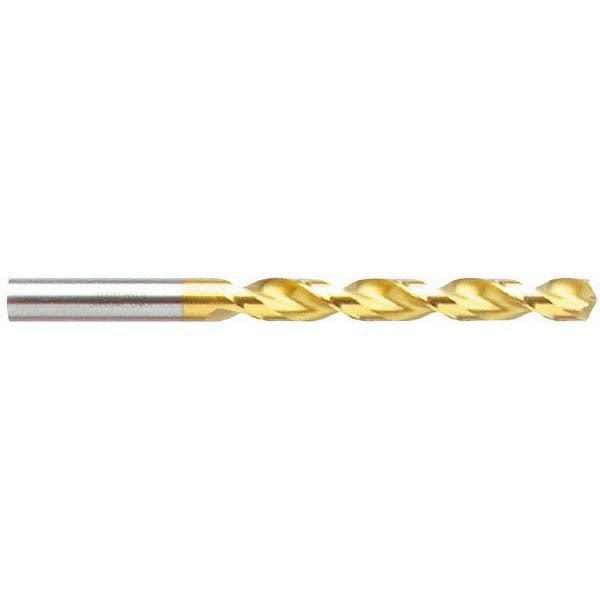

The Guhring 9006580075000 is a 0.2953" Cobalt drill bit with a TiN finish, 130° point. 2-23/32 flute length, 4-9/32 overall length.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.2953
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Flute length in2-23/32
Flute typeParabolic
Overall length in4-9/32
Point typeStandard
Shank diameter0.2953
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Web configurationTapered
Web thinningWeb-Thinned
