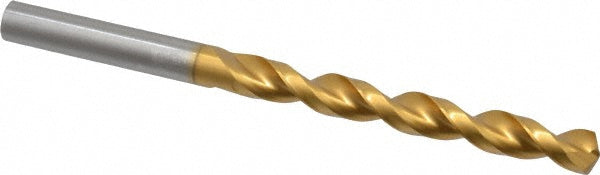

0.3150" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580080000

Guhring

0.3150" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580080000

MFR# 9006580080000Series 658

$60.95List $78.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Guhring 9006580080000 is a 0.3150" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. 2-15/16 flute length, 4-19/32 overall length. Series 658.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.3150
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in2-15/16
Flute typeParabolic
Maximum drilling depth2.4800
Number of flutes2
Overall length in4-19/32
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3150
Shank length (mm)42.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
