Guhring

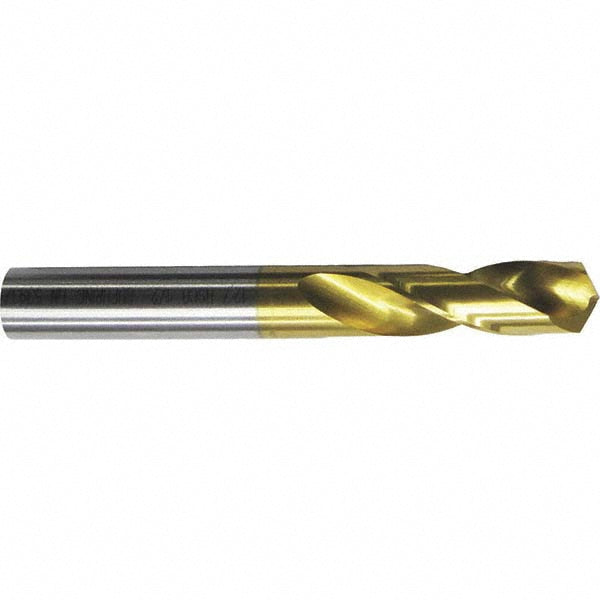

0.1102" Cobalt Stub Drill Bit, TiN, 130° point - Guhring 9006590028000
MFR# 9006590028000Series 659
$10.50List $13.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006590028000 is a 0.1102" Cobalt Stub drill bit with a TiN finish, 130° point. Series 659.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.1102
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle130
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length0.6299
Flute typeParabolic
Material gradeM35
Maximum drilling depth0.6299
Number of flutes2
Overall length1.8110
Point typeCone Relief
Shank diameter0.1102
Shank length1.1811
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeFast
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
