Guhring

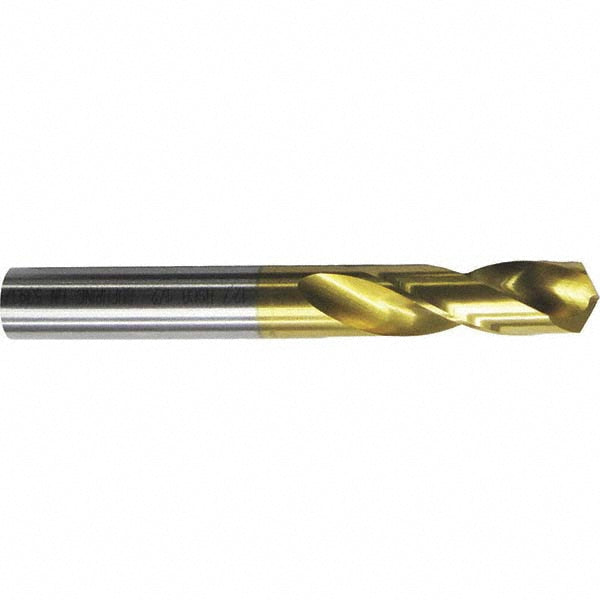

0.3307" Cobalt Stub Drill Bit, Coated, 130° point - Guhring 9006590084000
MFR# 9006590084000Series 659
$50.54List $64.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006590084000 is a 0.3307" Cobalt Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 659.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size0.3307
Drill bit size range0.3000 to 0.3500
Drill length typeStub
Drill point angle130
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length1.4567
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.4567
Number of flutes2
Overall length3.1102
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank diameter (mm)8.40
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
