Guhring

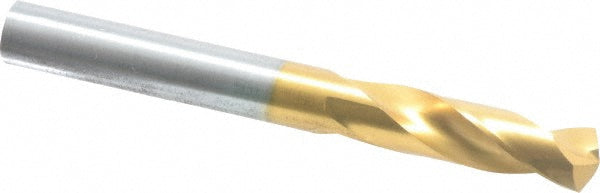

3/8" Cobalt Stub Drill Bit, Coated, 130° point - Guhring 9006590095200
MFR# 9006590095200Series 659
$39.26List $50.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingCoated
Description
The Guhring 9006590095200 is a 3/8" Cobalt Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 659.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHeavy Duty
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeParabolic
Maximum drilling depth1.1310
Number of flutes2
Overall length (mm)89.00
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
