Guhring

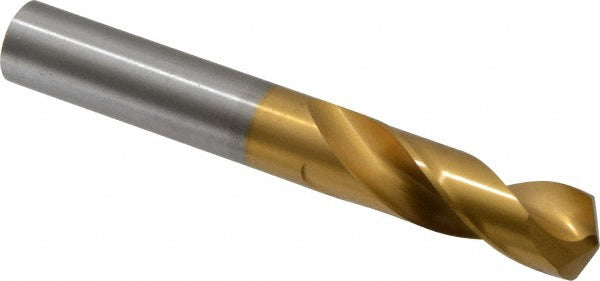

0.5906" Cobalt Stub Drill Bit, Coated, 130° point - Guhring 9006590150000
MFR# 9006590150000Series 659
$114.59List $144.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006590150000 is a 0.5906" Cobalt Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 659.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeHeavy Duty
Drill bit size0.5906
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length2.2047
Flute typeParabolic
Maximum drilling depth1.3190
Number of flutes2
Overall length4.3700
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
