Guhring

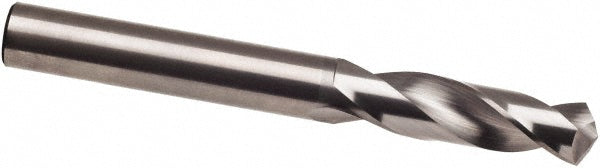

3/64" Solid Carbide Stub Drill Bit, 118° point - Guhring 9007300011900
MFR# 9007300011900Series 730
$9.42List $12.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/64
Flutes2
Description
The Guhring 9007300011900 is a 3/64" Solid Carbide Stub drill bit, 118° point. Suited for aluminum. Series 730.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit size in3/64
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)7.00
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth0.2450
Number of flutes2
Overall length (mm)28.00
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter (mm)1.19
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
