Guhring

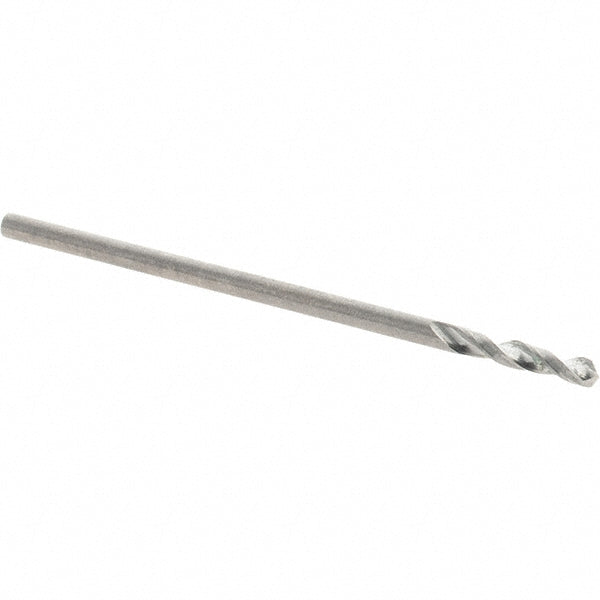

0.0472" Solid Carbide Stub Drill Bit, 118° point - Guhring 9007300012000
MFR# 9007300012000Series 730
$10.17List $13.04
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007300012000 is a 0.0472" Solid Carbide Stub drill bit, 118° point. Suited for aluminum. Series 730.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit gradeGeneral Purpose
Drill bit size0.0472
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length0.2756
Flute typeSpiral
Material gradeDK120
Maximum drilling depth0.2756
Number of flutes2
Overall length1.1024
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter (mm)1.20
Shank length0.8268
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
