Guhring

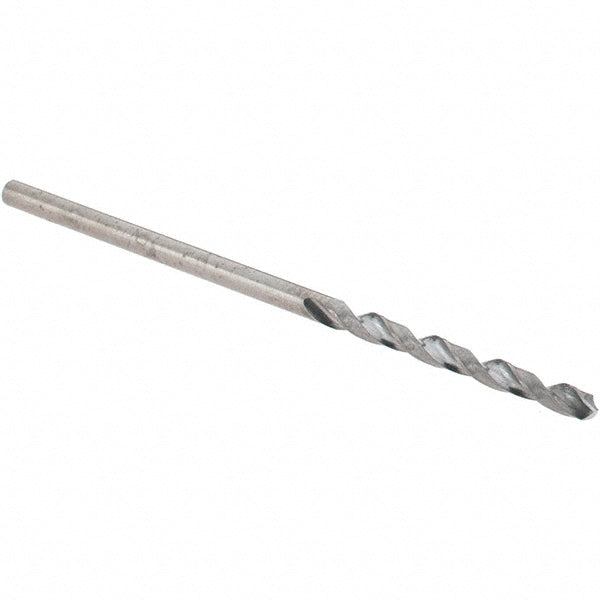

1/16" Solid Carbide Drill Bit, 118° point - Guhring 9007320015900
MFR# 9007320015900Series 732
$10.99List $14.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
Description
The Guhring 9007320015900 is a 1/16" Solid Carbide drill bit, 118° point. Suited for aluminum. Series 732.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length0.7087
Flute typeSpiral
Material gradeDK120
Maximum drilling depth0.7087
Number of flutes2
Overall length1.5748
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter in1/16
Shank length0.8661
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
