Guhring

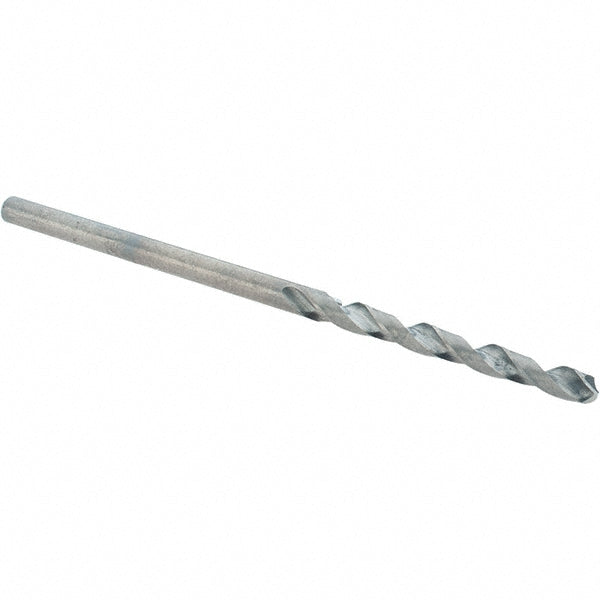

5/64" Solid Carbide Drill Bit, 118° point - Guhring 9007320019800
MFR# 9007320019800Series 732
$12.27List $15.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/64
Flutes2
Description
The Guhring 9007320019800 is a 5/64" Solid Carbide drill bit, 118° point. Suited for aluminum. Series 732.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in5/64
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length0.9449
Flute typeSpiral
Material gradeDK120
Maximum drilling depth0.9449
Number of flutes2
Overall length1.9291
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter in5/64
Shank length0.9843
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
