Guhring

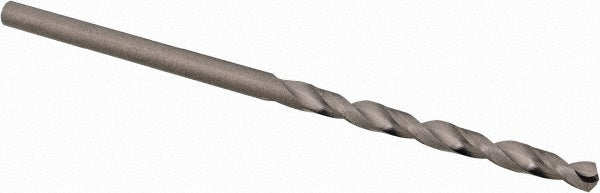

0.0866" Solid Carbide Drill Bit, 118° point - Guhring 9007320022000
MFR# 9007320022000Series 732
$13.49List $17.13
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007320022000 is a 0.0866" Solid Carbide drill bit, 118° point. Suited for aluminum. Series 732.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.0866
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.0630
Flute typeSpiral
Material gradeDK120
Maximum drilling depth1.0630
Number of flutes2
Overall length2.0866
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter0.0866
Shank length1.0236
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
