Guhring

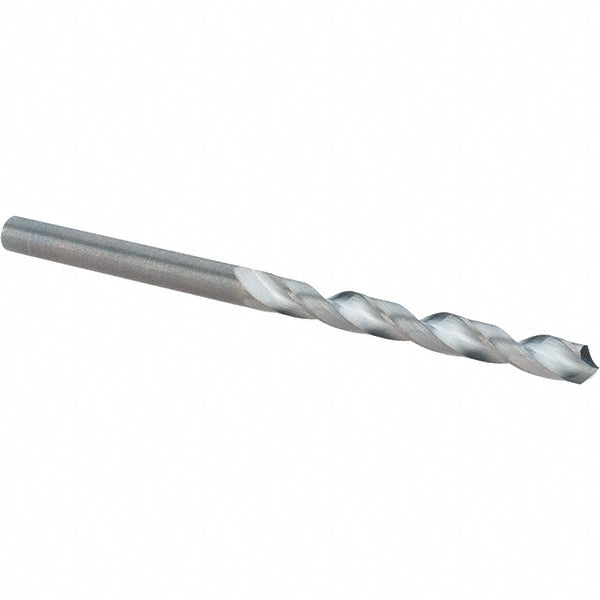

0.1654" Solid Carbide Drill Bit, 118° point - Guhring 9007320042000
MFR# 9007320042000Series 732
$25.85List $32.83
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007320042000 is a 0.1654" Solid Carbide drill bit, 118° point. Suited for aluminum. Series 732.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1654
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.6929
Flute typeSpiral
Material gradeDK120
Maximum drilling depth1.6929
Number of flutes2
Overall length2.9528
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter0.1654
Shank length1.2598
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
