Guhring

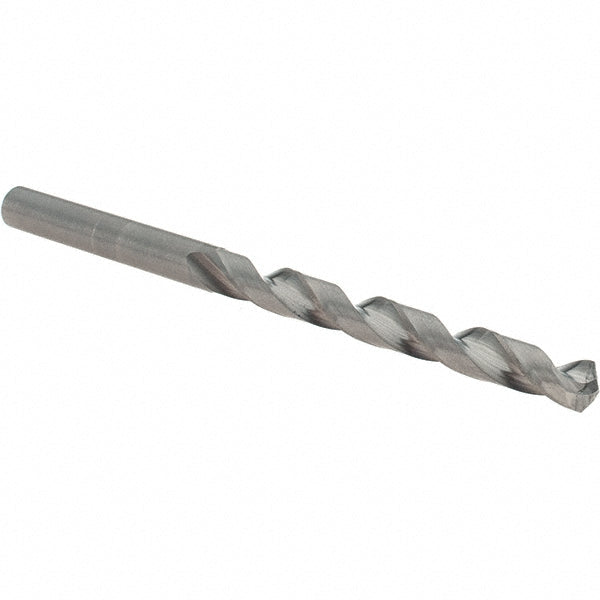

17/64" Solid Carbide Drill Bit, 118° point - Guhring 9007320067500
MFR# 9007320067500Series 732
$55.06List $70.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
Description
The Guhring 9007320067500 is a 17/64" Solid Carbide drill bit, 118° point. Suited for aluminum. Series 732.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in17/64
Drill bit size letterH
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length2.7165
Flute typeSpiral
Material gradeDK120
Maximum drilling depth2.7165
Number of flutes2
Overall length4.2913
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter in17/64
Shank length1.5748
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
