Guhring

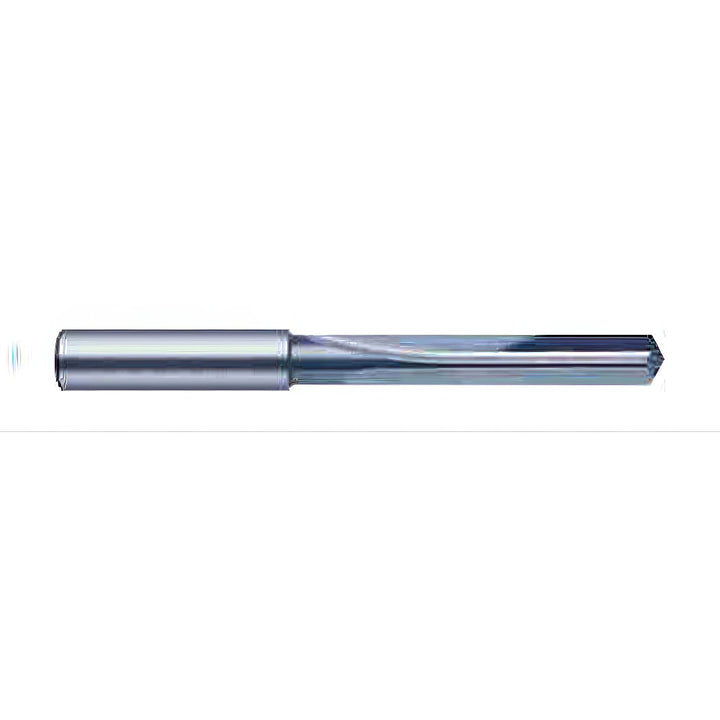

0.2047" Carbide Drill Bit, 120° point - Guhring 9007680052000
MFR# 9007680052000Series 768
$196.04List $251.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007680052000 is a 0.2047" Carbide drill bit, 120° point. Suited for aluminum. Series 768.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit size0.2047
Drill bit typeStraight-Flute
Drill point angle120
Flute by diameter ratio4xD
Flute length (mm)36.00
Material gradeSubmicron
Maximum drilling depth1.1100
Number of flutes2
Overall length (mm)74.00
Point typeStandard
Primary workpiece materialAluminum
Secondary workpiece materialAluminum; Aluminum Alloy; Cast Iron
Shank diameter (mm)6.00
Shank length (mm)36.00
Specification numberDIN 6535HA
Tool materialCarbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
