Guhring

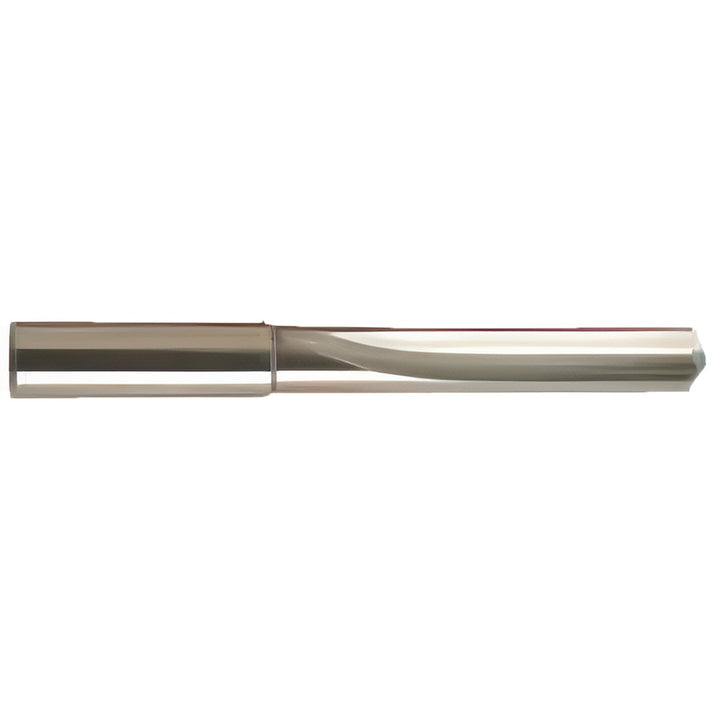

21/64" Carbide Drill Bit, 120° point - Guhring 9007680083300
MFR# 9007680083300Series 768
$252.89List $324.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
Description
The Guhring 9007680083300 is a 21/64" Carbide drill bit, 120° point. Suited for aluminum, aluminum alloy, cast iron. Series 768.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit size in21/64
Drill bit typeStraight-Flute
Drill point angle120
Flute by diameter ratio4xD
Flute length (mm)61.00
Material gradeSubmicron
Number of flutes2
Overall length (mm)103.00
Point typeStandard
Primary workpiece materialAluminum; Aluminum Alloy; Cast Iron
Secondary workpiece materialAluminum; Aluminum Alloy; Cast Iron
Shank diameter (mm)10.00
Specification numberDIN 6535HA
Tool materialCarbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
