Guhring

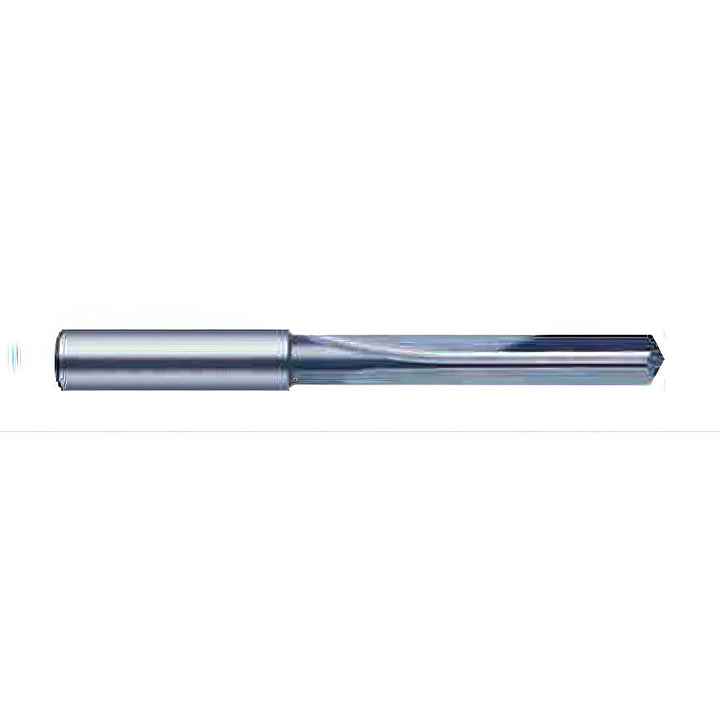

27/64" Carbide Drill Bit, 120° point - Guhring 9007680107200
MFR# 9007680107200Series 768
$325.59List $410.32
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
Description
The Guhring 9007680107200 is a 27/64" Carbide drill bit, 120° point. Suited for aluminum. Series 768.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit size in27/64
Drill bit typeStraight-Flute
Drill point angle120
Flute by diameter ratio4xD
Flute length (mm)71.00
Material gradeSubmicron
Maximum drilling depth2.1620
Number of flutes2
Overall length (mm)118.00
Point typeStandard
Primary workpiece materialAluminum
Secondary workpiece materialAluminum; Aluminum Alloy; Cast Iron
Shank diameter (mm)12.00
Shank length (mm)45.00
Specification numberDIN 6535HA
Tool materialCarbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
