Guhring
7/16" Carbide Drill Bit, 120° point - Guhring 9007680111100
MFR# 9007680111100Series 768
$319.93List $410.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
Description

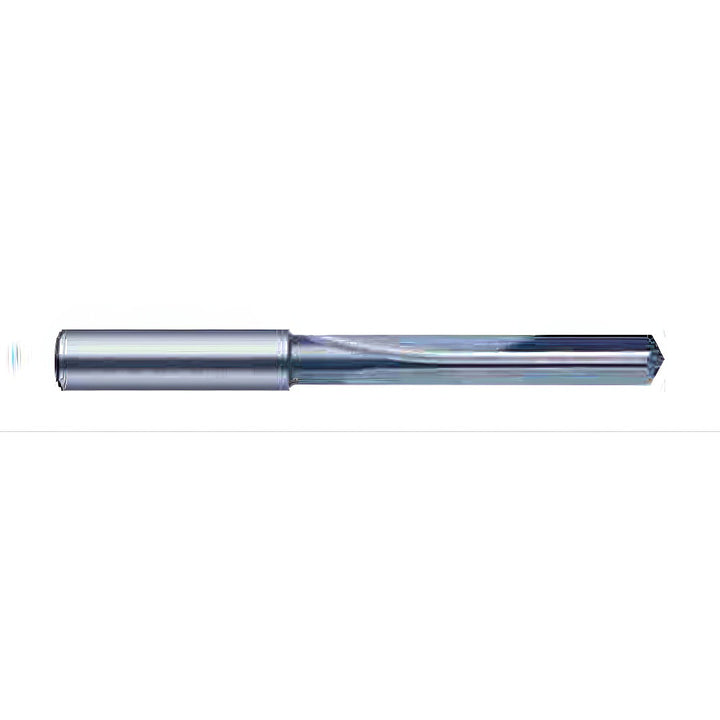

The Guhring 9007680111100 is a 7/16" Carbide drill bit, 120° point. Suited for aluminum. Series 768.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit size in7/16
Drill bit typeStraight-Flute
Drill point angle120
Flute by diameter ratio4xD
Flute length (mm)71.00
Material gradeSubmicron
Maximum drilling depth2.1390
Number of flutes2
Overall length (mm)118.00
Point typeStandard
Primary workpiece materialAluminum
Secondary workpiece materialAluminum; Aluminum Alloy; Cast Iron
Shank diameter (mm)12.00
Shank length (mm)45.00
Specification numberDIN 6535HA
Tool materialCarbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
