Guhring

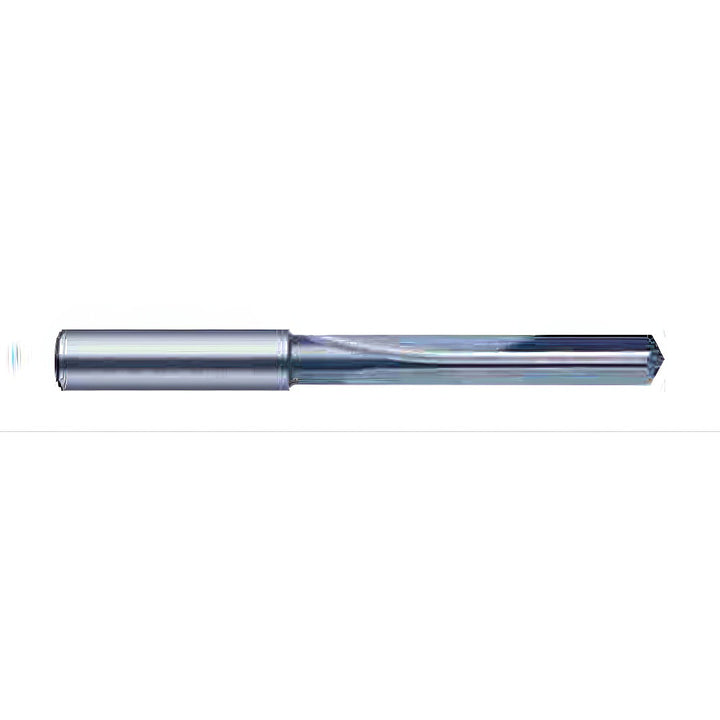

0.6102" Carbide Drill Bit, 120° point - Guhring 9007680155000
MFR# 9007680155000Series 768
$393.58List $504.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007680155000 is a 0.6102" Carbide drill bit, 120° point. Suited for aluminum. Series 768.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.6102
Drill bit typeStraight-Flute
Drill point angle120
Flute by diameter ratio4xD
Flute length (mm)83.00
Material gradeK40
Maximum drilling depth2.3520
Number of flutes2
Overall length (mm)133.00
Point typeSpecial
Primary workpiece materialAluminum
Secondary workpiece materialCast Aluminum
Shank diameter (mm)16.00
Shank length (mm)48.00
Tool materialCarbide
Web thinningWeb-Thinned
