Guhring

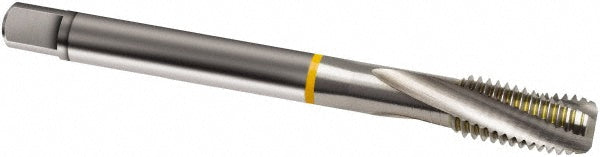

M16x1.5 Metric Fine Cobalt Tap, Straw - Guhring 9008330160070
MFR# 9008330160070Series 833
$67.14List $86.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingStraw
Description
The Guhring 9008330160070 is a Metric Fine Cobalt tap with a Straw finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishStraw
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationSteel
Number of flutes3
Overall length (mm)100.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)12.00
Square size (mm)9.00
Thread directionRight Hand
Thread limitD4; D5
Thread pitch (mm)1.50
Thread size (mm)M16x1.5
Thread standardMetric Fine
