Guhring
M2x0.4 Metric High-Speed Steel-E-CO Tap, TiN - Guhring 9009210020000
MFR# 9009210020000Series 921
$40.91List $52.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

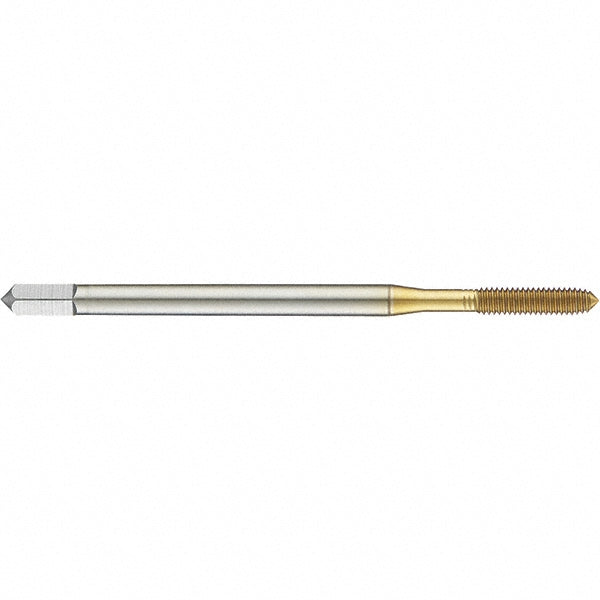

The Guhring 9009210020000 is a Metric High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio1.5xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Oil grooves0
Overall length1.7717
Shank diameter0.1102
Square size0.0827
Tapping depth0.5315
Thread directionRight Hand
Thread length0.3150
Thread limitD4; D5
Thread size (mm)M2x0.4
Thread standardMetric
