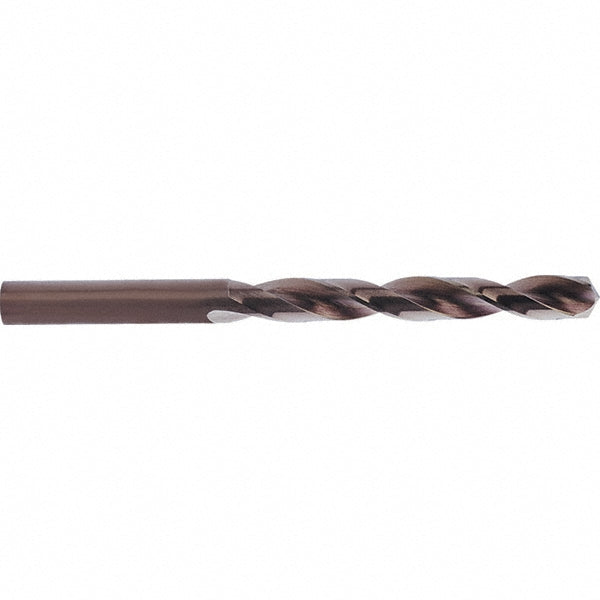

3/32" Cobalt Drill Bit, Straw, 135° point - Guhring 9010180023800

Guhring

3/32" Cobalt Drill Bit, Straw, 135° point - Guhring 9010180023800

MFR# 9010180023800Series 1018

$5.34List $6.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
Flutes2
CoatingStraw

Description

The Guhring 9010180023800 is a 3/32" Cobalt drill bit with a Straw finish, 135° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 1018.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Drill point length (mm)30.00
Flute by diameter ratio5xD
Flute length1.1811
Flute typeParabolic
Maximum drilling depth1.0410
Number of flutes2
Overall length2.2441
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)2.38
Shank length (mm)27
Shank typeStraight
Specification designationDIN; NAS
StandardsDIN 338
Web thinningWeb-Thinned
