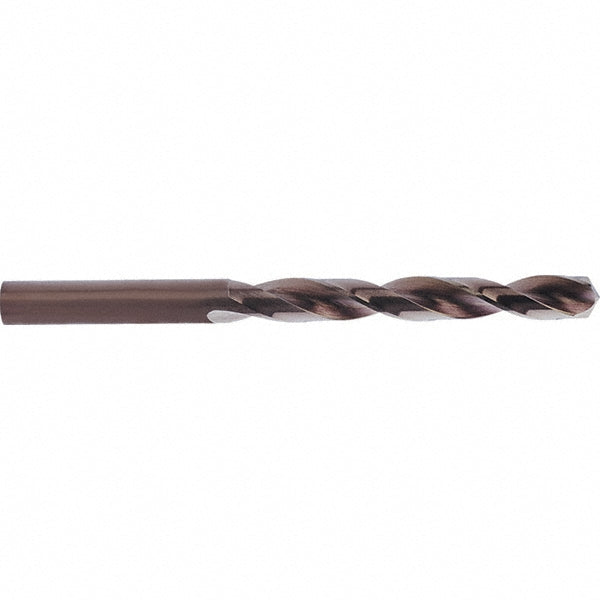

0.2992" Cobalt Drill Bit, Straw, 135° point - Guhring 9010180076000

Guhring

0.2992" Cobalt Drill Bit, Straw, 135° point - Guhring 9010180076000

MFR# 9010180076000Series 1018

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Guhring 9010180076000 is a 0.2992" Cobalt drill bit with a Straw finish, 135° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 1018.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2992
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length (mm)75.00
Flute by diameter ratio5xD
Flute length2.9528
Flute typeParabolic
Maximum drilling depth2.5040
Number of flutes2
Overall length4.6063
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)7.6
Shank length (mm)42
Shank typeStraight
Specification designationDIN; NAS
StandardsDIN 338
Web thinningWeb-Thinned
