Guhring

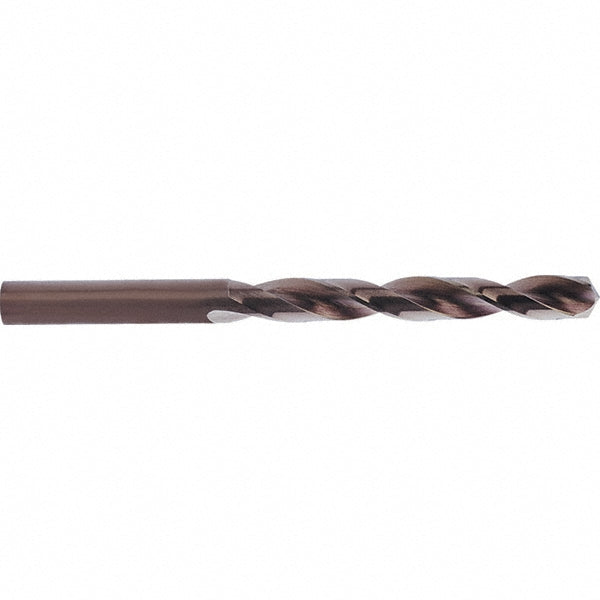

0.3583" Cobalt Drill Bit, Straw, 135° point - Guhring 9010180091000
MFR# 9010180091000
$25.68List $32.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Guhring 9010180091000 is a 0.3583" Cobalt drill bit with a Straw finish, 135° point. Suited for steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3583
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Drill point length (mm)81.00
Flute by diameter ratio5xD
Flute length3.1890
Flute typeParabolic
Number of flutes2
Overall length4.9213
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)9.1
Shank length (mm)44
Shank typeStraight
Specification designationDIN; NAS
Web thinningWeb-Thinned
