Guhring

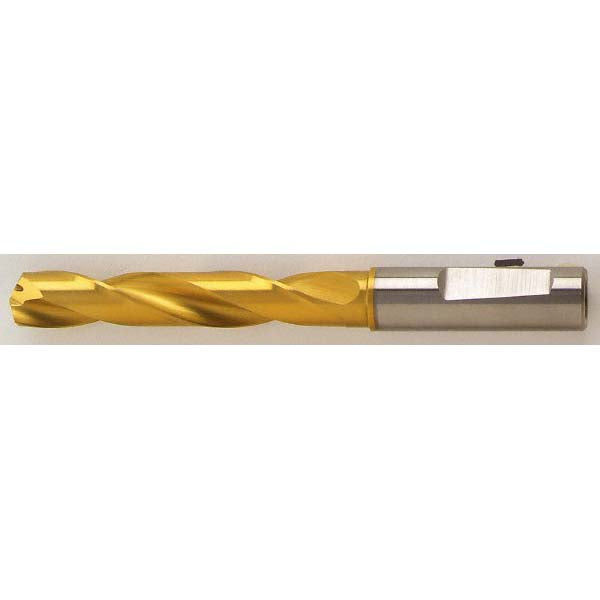

0.1969" Solid Carbide Drill Bit, TiN, 140° point - Guhring 9011830050000
MFR# 9011830050000
$192.50List $246.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9011830050000 is a 0.1969" Solid Carbide drill bit with a TiN finish, 140° point.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.004 to 0.016 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.1969
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)44.00
Flute typeSpiral
Material gradeSubmicron
Overall length (mm)82.00
Point typeSU
Shank diameter0.2362
Shank length1.4960
Shank typeWhistle Notch
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
