Guhring
0.2362" Solid Carbide Drill Bit, TiN, 140° point - Guhring 9012420060000
MFR# 9012420060000Series 1242
$115.63List $148.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

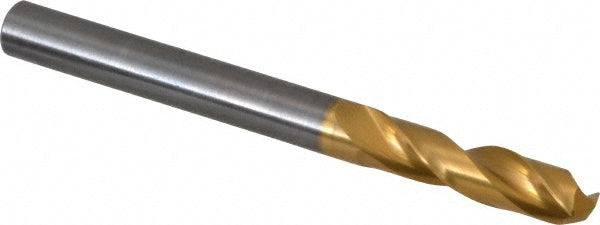

The Guhring 9012420060000 is a 0.2362" Solid Carbide drill bit with a TiN finish, 140° point. Suited for brass, cast iron, steel. Series 1242.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit size0.2362
Drill bit size range0.2000 to 0.2500
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Material gradeSubmicron
Overall length (mm)66.00
Point typeSU
Primary workpiece materialBrass; Cast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
