Guhring
0.3346" Solid Carbide Drill Bit, TiN, 140° point - Guhring 9012430085000
MFR# 9012430085000
$190.63List $244.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

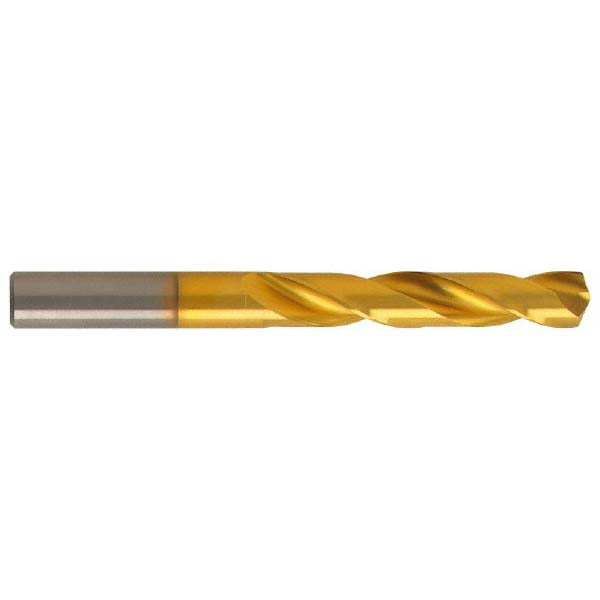

The Guhring 9012430085000 is a 0.3346" Solid Carbide drill bit with a TiN finish, 140° point.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.006 to 0.021 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3346
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeSpiral
Material gradeSubmicron
Overall length (mm)96.00
Point typeSU
Shank diameter0.3346
Shank typeStraight-Cylindrical
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
