Guhring

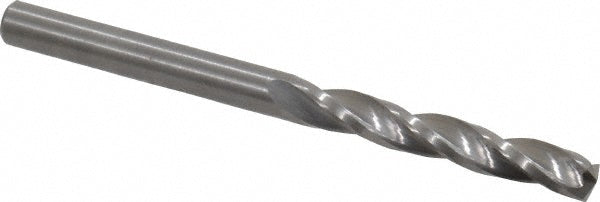

11/64" Solid Carbide Drill Bit, 150° point - Guhring 9014520043700
MFR# 9014520043700Series 1452
$73.61List $94.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/64
Flutes3
Description
The Guhring 9014520043700 is a 11/64" Solid Carbide drill bit, 150° point. 1-1/4 flute length, 2-9/32 overall length. Series 1452.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-1/4
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth1.0020
Number of flutes3
Overall length in2-9/32
Point typeStandard
Shank diameter in11/64
Shank length (mm)26.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
