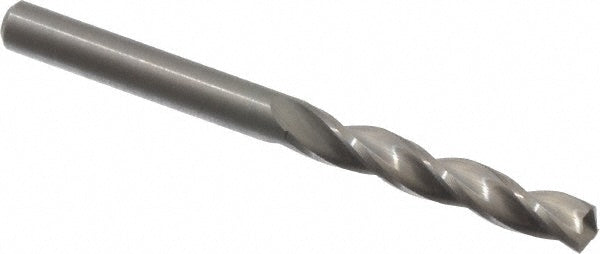

#13 Solid Carbide Drill Bit, 150° point - Guhring 9014520047000
MFR# 9014520047000Series 1452
$77.85List $99.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9014520047000 is a #13 Solid Carbide drill bit, 150° point. Series 1452.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.1850
Drill bit size range0.1500 - 0.2000
Drill bit size wire#13
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length1.2598
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth0.9820
Number of flutes3
Overall length2.2835
Point typeStandard
Shank diameter0.1850
Shank length (mm)26.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
