Guhring

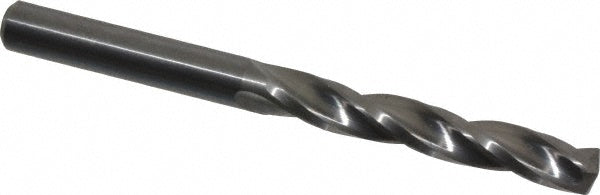

7/32" Solid Carbide Drill Bit, 150° point - Guhring 9014520055600
MFR# 9014520055600Series 1452
$94.63List $121.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
Flutes3
Description
The Guhring 9014520055600 is a 7/32" Solid Carbide drill bit, 150° point. 1-17/32 flute length, 2-19/32 overall length. Series 1452.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-17/32
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth1.2070
Number of flutes3
Overall length in2-19/32
Point typeStandard
Shank diameter in7/32
Shank length (mm)27.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
