Guhring

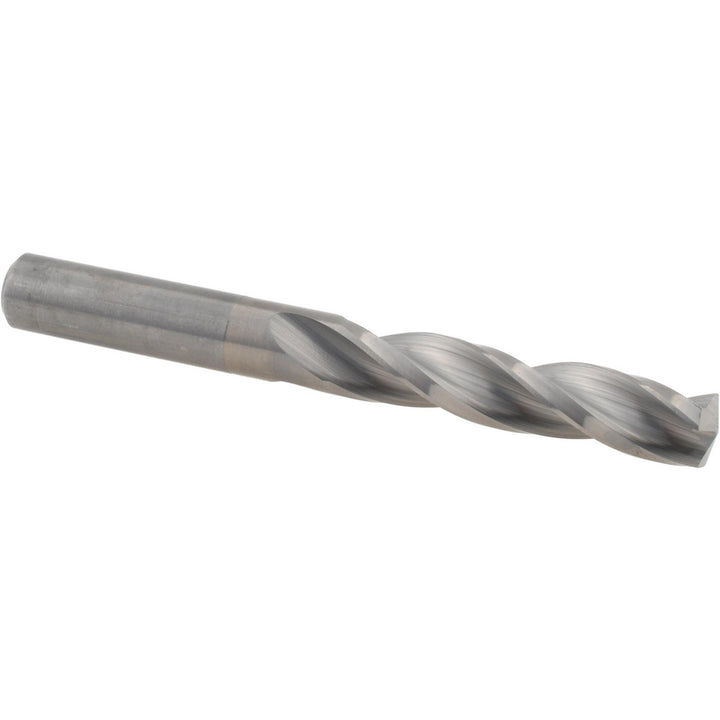

0.3346" Solid Carbide Drill Bit, 150° point - Guhring 9014520085000
MFR# 9014520085000Series 1452
$155.48List $199.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9014520085000 is a 0.3346" Solid Carbide drill bit, 150° point. Suited for aluminum & non-ferrous. Series 1452.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.015 to 0.000 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3346
Drill bit size range0.3000 - 0.3500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length1.8898
Flute typeRegular Spiral
Material gradeSubmicron
Maximum drilling depth1.3900
Number of flutes3
Overall length3.1102
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.3346
Shank length (mm)31
Shank typeStraight
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
