Guhring

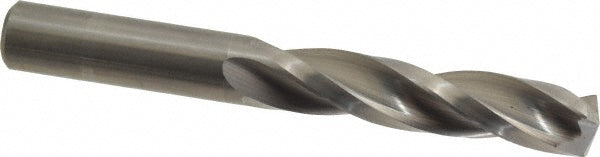

7/16" Solid Carbide Drill Bit, 150° point - Guhring 9014520111100
MFR# 9014520111100Series 1452
$306.16List $385.84
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes3
Description
The Guhring 9014520111100 is a 7/16" Solid Carbide drill bit, 150° point. 2-23/64 flute length, 3-3/4 overall length. Series 1452.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2-23/64
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth1.7060
Number of flutes3
Overall length in3-3/4
Point typeStandard
Shank diameter in7/16
Shank length (mm)35.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
