Guhring

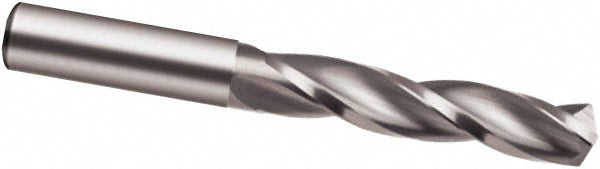

11/16" Solid Carbide Drill Bit, 150° point - Guhring 9014520174600
MFR# 9014520174600
$632.44List $811.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/16
Flutes3
Description
The Guhring 9014520174600 is a 11/16" Solid Carbide drill bit, 150° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit finish coatingBright
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in11/16
Drill bit size range0.6500+
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length (mm)76.00
Flute typeSpiral
Number of flutes3
Overall length (mm)123.00
Point typeFaceted
Shank diameter (mm)17.46
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
