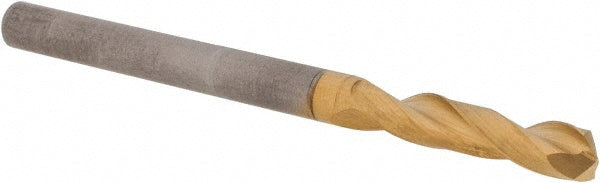

0.1575" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9017020040000

Guhring

0.1575" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9017020040000

MFR# 9017020040000Series 1702

$103.62List $132.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Guhring 9017020040000 is a 0.1575" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for stainless steel. Series 1702.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size0.1575
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length0.8661
Flute typeSpiral
Material gradeDK460UF
Maximum drilling depth0.6300
Number of flutes2
Overall length2.1654
Point typeSF
Primary workpiece materialStainless Steel
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
