Guhring
0.1874" Solid Carbide Screw Machine Drill Bit, TiN, 140° point - Guhring 9017020047600
MFR# 9017020047600Series 1702
$110.24List $138.93
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

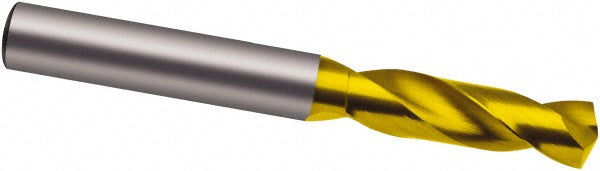

The Guhring 9017020047600 is a 0.1874" Solid Carbide Screw Machine drill bit with a TiN finish, 140° point. Suited for stainless steel. Series 1702.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.1874
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeRegular Spiral
Material gradeK40
Maximum drilling depth0.7430
Number of flutes2
Overall length2.4409
Point typeStandard
Primary workpiece materialStainless Steel
Shank diameter0.1874
Shank length1.4173
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
