0.2165" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9017020055000

Guhring

0.2165" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9017020055000

MFR# 9017020055000Series 1702

$110.91List $142.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

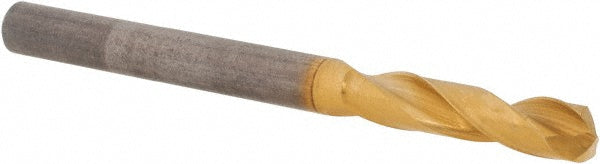

The Guhring 9017020055000 is a 0.2165" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for stainless steel. Series 1702.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size0.2165
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length1.1024
Flute typeSpiral
Material gradeDK460UF
Maximum drilling depth0.7780
Number of flutes2
Overall length2.5984
Point typeSF
Primary workpiece materialStainless Steel
Shank diameter (mm)5.50
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
