Guhring

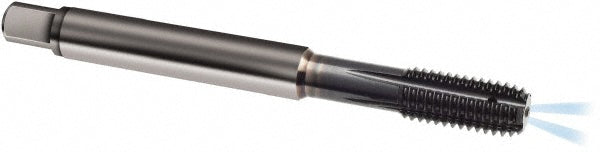

M10x1.5 Metric Solid Carbide Tap, TiCN - Guhring 9019720100000
MFR# 9019720100000Series 1972
$416.27List $524.60
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Guhring 9019720100000 is a Metric Solid Carbide tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiCN
Coolant throughYes
Flute by diameter ratio3xD
MaterialSolid Carbide
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloy
Material application codeP; M; N; S
Oil grooves5
Overall length3.9370
Shank diameter0.3937
Square size0.3150
Tapping depth1.5354
Thread directionRight Hand
Thread length0.6299
Thread limitD10; D11
Thread size (mm)M10x1.5
Thread standardMetric
