5/64" Cobalt Drill Bit, Multi-layer, 130° point - Guhring 9024580019800

Guhring

5/64" Cobalt Drill Bit, Multi-layer, 130° point - Guhring 9024580019800

MFR# 9024580019800Series 2458

$13.91List $17.53 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/64
Flutes2
CoatingMulti-layer

Description

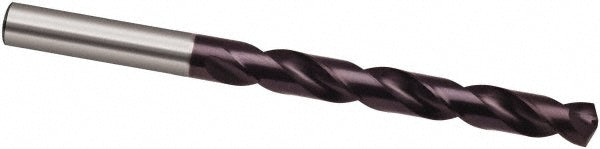

The Guhring 9024580019800 is a 5/64" Cobalt drill bit with a Multi-layer finish, 130° point. Suited for stainless steel, high-temp alloy, steel. Series 2458.

Specifications

Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in5/64
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length0.9449
Flute typeRegular Spiral
Maximum drilling depth0.8280
Number of flutes2
Overall length1.9291
Point typeCone Relief
Primary workpiece materialStainless Steel; High-Temp Alloy; Steel
Shank diameter0.0780
Shank length (mm)25
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 338
Tool applicationSelf-Centering
Tool performanceHigh Performance
Web thinningWeb-Thinned
