Guhring

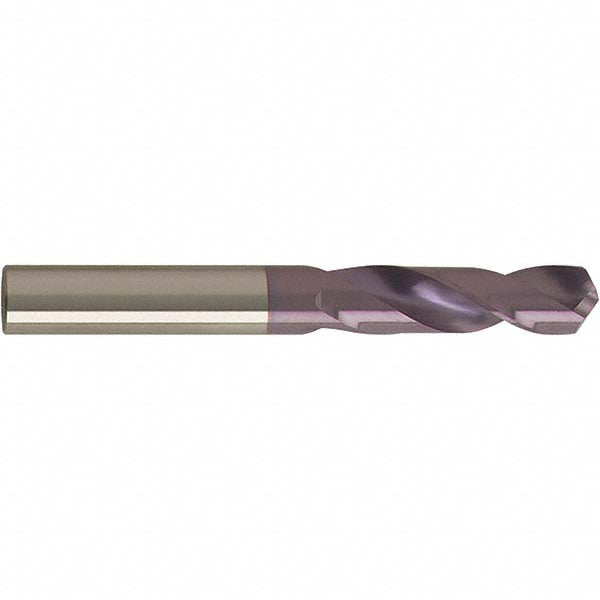

3/32" Solid Carbide Stub Drill Bit, Coated, 118° point - Guhring 9024630023800
MFR# 9024630023800Series 2463
$13.98List $17.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/32
Flutes2
CoatingCoated
Description
The Guhring 9024630023800 is a 3/32" Solid Carbide Stub drill bit with a Coated finish, 118° point. Suited for aluminum. Series 2463.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit gradeGeneral Purpose
Drill bit size in3/32
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle118
Drill tip finish coatingFIREX
Flute by diameter ratio3xD
Flute length0.5512
Flute typeSpiral
Material gradeDK120
Maximum drilling depth0.5512
Number of flutes2
Overall length1.6929
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter (mm)2.38
Shank length1.1417
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
