Guhring

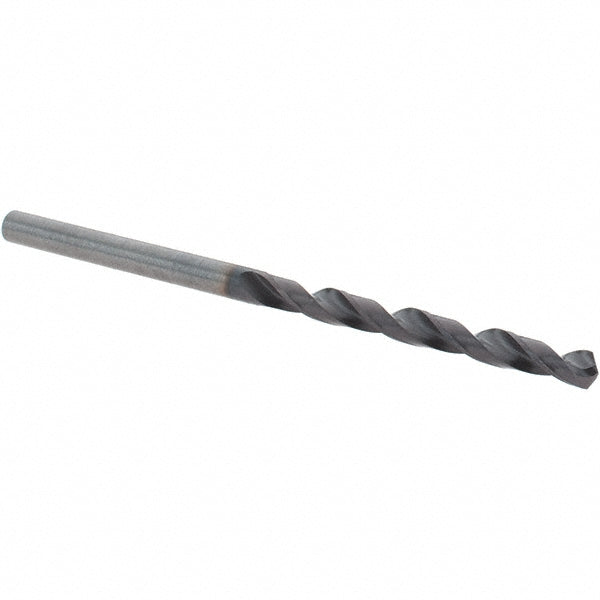

0.1339" Solid Carbide Drill Bit, FIREX, 118° point - Guhring 9024640034000
MFR# 9024640034000Series 2464
$29.94List $38.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9024640034000 is a 0.1339" Solid Carbide drill bit with a FIREX finish, 118° point. Suited for aluminum. Series 2464.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingFIREX
Drill bit materialSolid Carbide
Drill bit size0.1339
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)39.00
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth1.3350
Number of flutes2
Overall length (mm)70.00
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter0.1339
Shank length (mm)31.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
