Guhring

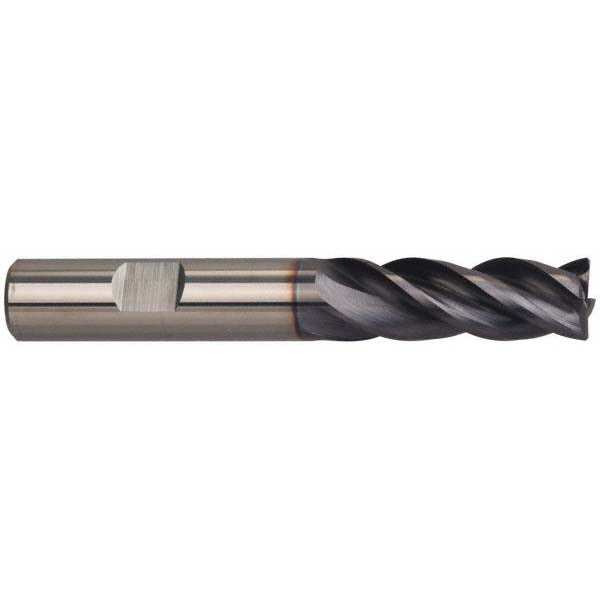

5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9030780079400

MFR# 9030780079400Series 3078

$63.25List $81.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9030780079400 is a 5/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for stainless steel, steel. 13/16 length of cut, 2-1/2 overall length. Series 3078.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40; 42

Length of cut in13/16

Length typeRegular

Material gradeProprietary

Mill diameter in5/16

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

Primary workpiece materialStainless Steel; Steel

Secondary workpiece materialCast Iron

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
