5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031140079400

Guhring

5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031140079400

MFR# 9031140079400Series 3114

$54.98List $69.29 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingFIREX

Description

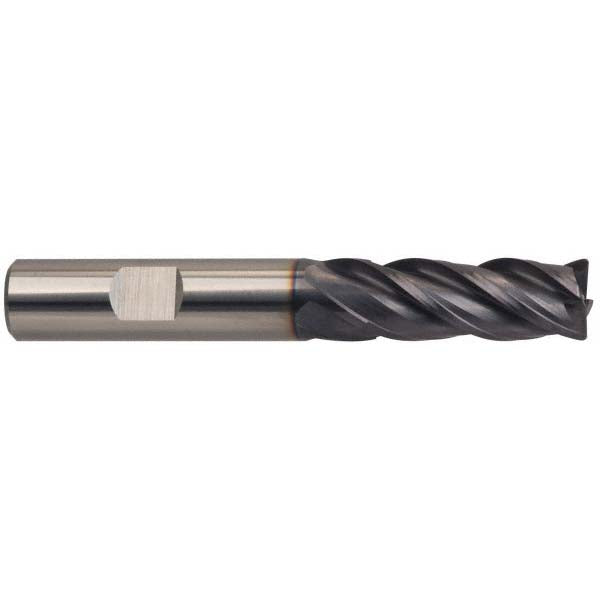

The Guhring 9031140079400 is a 5/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 13/16 length of cut, 2-1/2 overall length. Series 3114.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35; 38
Length of cut in13/16
Length typeRegular
Material gradeProprietary
Mill diameter in5/16
Mill diameter toleranceh10
Number of flutes4
Overall length in2-1/2
Primary workpiece materialCast Iron; Steel
Secondary workpiece materialHard Material; Stainless Steel
Shank diameter in5/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
