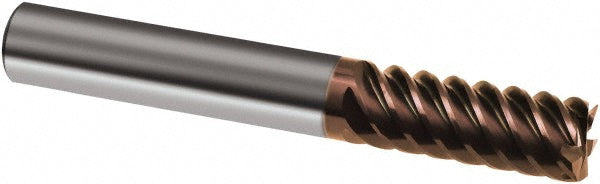

3/8" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-Si - Guhring 9030840095200

Name: 3/8" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-Si - Guhring 9030840095200
Brand: Guhring
SKU: 9030840095200
Price: 65.16 USD
Availability: InStock

MFR# 9030840095200Series 3084

$65.16List $83.56 Save 22%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes6

MaterialSolid Carbide

Coatingnano-Si

Description

The Guhring 9030840095200 is a 3/8 6-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-Si finish for longer tool life. 7/8 length of cut, 2-1/2 overall length. Series 3084.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnano-Si

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in7/8

Length typeRegular

Material gradeProprietary

Maximum helix angle45

Mill diameter in3/8

Mill diameter toleranceh10

Number of flutes6

Overall length in2-1/2

Secondary workpiece materialHard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
