Guhring
3/16" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9030870047640
MFR# 9030870047640Series 3087
$63.77List $81.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes2
MaterialSolid Carbide
CoatingFIREX
Description

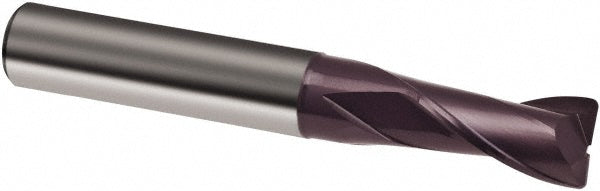

The Guhring 9030870047640 is a 3/16 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 5/8 length of cut, 2 overall length. Series 3087.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishFIREX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Length typeStandard
Material gradeProprietary
Mill diameter in3/16
Number of flutes2
Overall length in2
Shank diameter in3/16
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
