Guhring

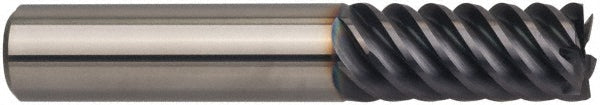

5/16" 6-Flute Solid Carbide Corner Radius End Mill, FIREX - Guhring 9030910079460

MFR# 9030910079460Series 3091

$80.69List $103.49 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes6

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9030910079460 is a 5/16 6-flute Solid Carbide corner radius end mill with a FIREX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 13/16 length of cut, 2-1/2 overall length. Series 3091.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Corner radius0.0620

Corner radius tolerance-0.02 to 0.02 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in13/16

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal; Other Non-Ferrous Metal; Hard Material

Material removal typeFinishing

Mill diameter in5/16

Mill diameter toleranceh10

Number of flutes6

Overall length in2-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
