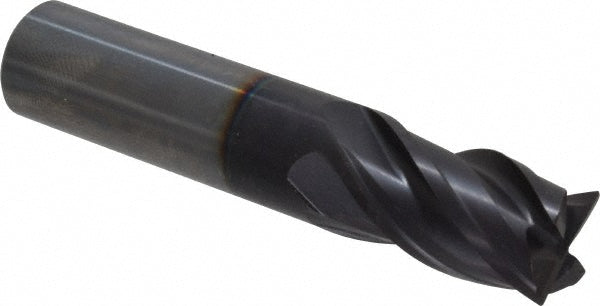

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031130127000

Guhring

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031130127000

MFR# 9031130127000Series 3113

$84.84List $108.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingFIREX

Description

The Guhring 9031130127000 is a 1/2 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 5/8 length of cut, 2-1/2 overall length. Series 3113.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Length typeStub
Material gradeProprietary
Maximum helix angle38
Mill diameter in1/2
Mill diameter toleranceh10
Minimum helix angle35
Number of flutes4
Overall length in2-1/2
Primary workpiece materialCast Iron; Steel
Secondary workpiece materialHard Material; Stainless Steel
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
