Guhring

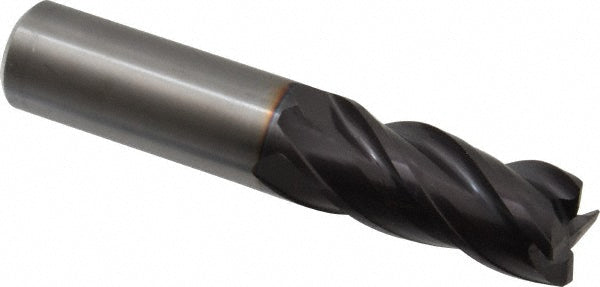

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031140190500
MFR# 9031140190500Series 3114
$278.35List $357.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9031140190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 1-1/2 length of cut, 4 overall length. Series 3114.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35; 38
Length of cut in1-1/2
Length typeRegular
Material gradeProprietary
Mill diameter in3/4
Mill diameter toleranceh10
Number of flutes4
Overall length in4
Primary workpiece materialCast Iron; Steel
Secondary workpiece materialHard Material; Stainless Steel
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
